Whether your van occasionally stops on a residential street, works daily on construction sites, or operates near fast-moving traffic, visibility is essential. That's where Chapter 8 guidance comes in.
Many trades, contractors and local businesses assume Chapter 8 Chevrons are "only for motorway works vehicles", but that's not the case. The principles apply to any vehicle that stops or moves slowly on the public highway, and the expectations become stricter as vehicle speed, road speed and risk increase.
We speak to Sussex businesses about this topic all the time, so this guide explains:
- What Chapter 8 Chevrons actually are
- Why it matters even though it isn't law
- What markings you're expected to have
- How these markings protect your team, your business and the public
What Are Chapter 8 Chevrons and Who Does It Apply To?
Chapter 8 forms part of the UK Traffic Signs Manual. It sets out best-practice safety guidance for vehicles operating on or near:
- Public roads
- Construction or maintenance sites beside roads
- Urban streets
- Rural routes
- High-speed A-roads and motorways
The key point:
Chapter 8 isn't legislation. You won't be fined simply for not meeting it.
However…
It is the recognised industry standard, and the benchmark you will be judged against by:
- National Highways
- Local councils
- Utility providers
- Civil engineering and construction contractors
- Breakdown and recovery operators
- Insurance companies
Because of this, if a vehicle is operating without appropriate high-visibility markings, it may still face serious consequences such as:
- Being turned away from site
- Failing safety audits
- Project delays
- Questions of negligence or liability if an incident occurs
In other words:
Chapter 8 Chevrons may not be law, but failing to follow it can still cause real operational and legal problems.
What Rear Markings Are Expected Under Chapter 8?
Below is a practical breakdown of the elements most commonly required for vehicles that stop or work on the road network.
These requirements strengthen on higher-speed roads, where visibility is critical.

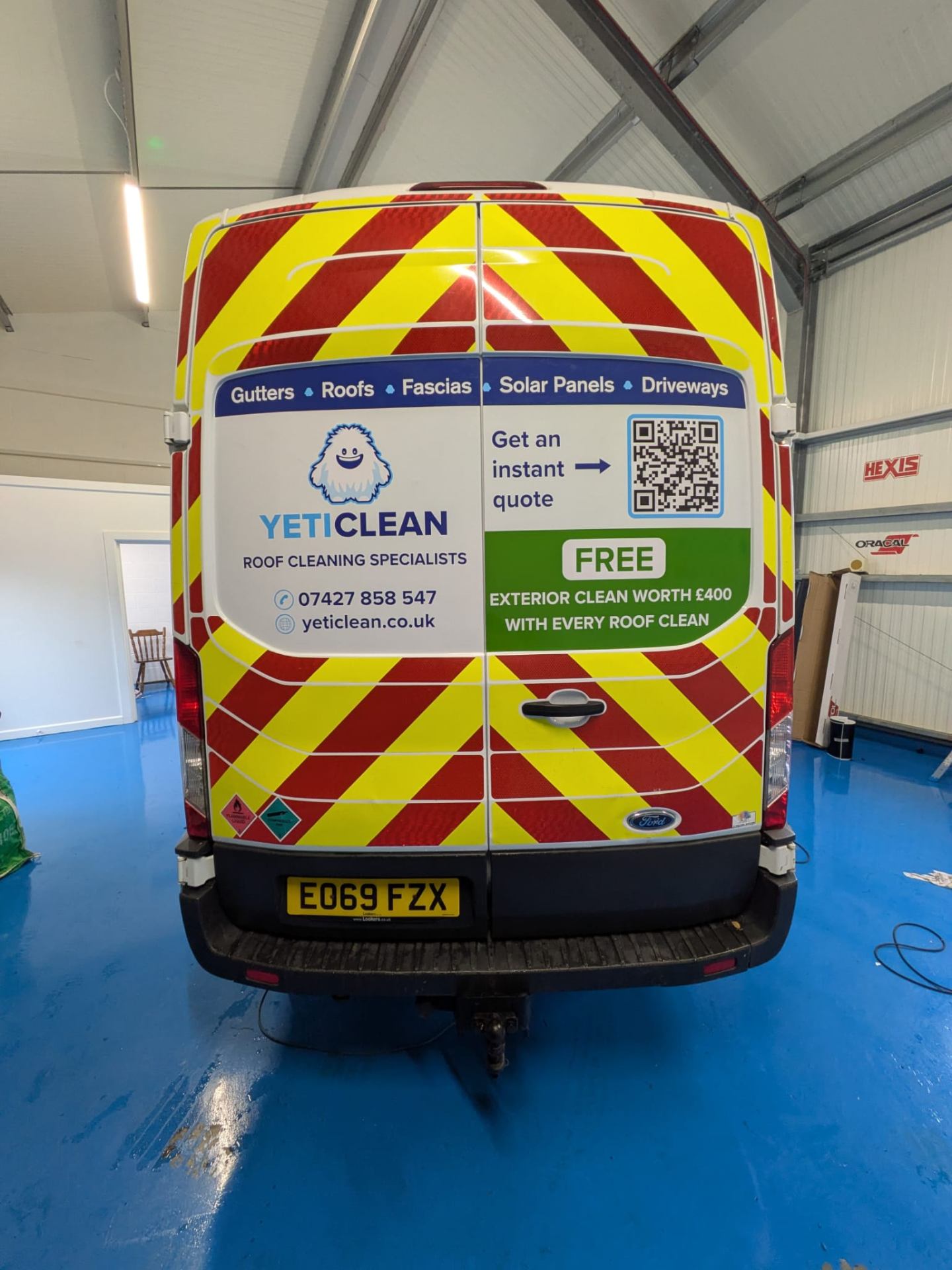

1. High-Visibility Red and Yellow Chevron Panel
This is the most recognisable part of Chapter 8 compliance.
Chevron Requirements:
- Alternating retro-reflective red stripes on a fluorescent yellow background
- Diagonal stripes pointing upward
- Minimum 150mm stripe width
- Should cover as much of the rear as reasonably possible
- Typically produced using premium micro-prismatic reflective film for maximum visibility
Why It Matters:
A vehicle on a high-speed road can be approached at 50–70 mph, meaning drivers travel 22–31 metres every second.
Bright, bold chevrons provide early warning and significantly reduce the risk of rear-end collisions, especially in:
- Fog
- Rain
- Poor daylight
- Night conditions
- Low winter sun
2. "HIGHWAY MAINTENANCE" (or similar) Text
Vehicles stopping or working on the highway are expected to display clear wording such as:
HIGHWAY MAINTENANCE
Placement and Requirements:
- Non-reflective black text
- Positioned prominently across the chevron area
- Easily readable from distance
Why It Matters:
This instantly signals to other road users that:
- The vehicle is authorised to be on the highway
- Caution is required
- Lane adjustment or speed reduction may be necessary
It also helps enforcement and highways teams identify legitimate vehicles.
3. Additional Conspicuity Tape (ECE104 Reflective Outline Tape)
Although not strictly part of Chapter 8, ECE104 reflective tape is widely adopted to increase visibility on:
- Vans
- Luton bodies
- Tippers
- Trailers
- HGVs
Why It's Recommended:
At night or in poor visibility, outline tape helps drivers understand:
- The size of your vehicle
- Its position
- The distance to it
This is especially important for larger or box-bodied vehicles.
4. Amber Warning Beacons
Vehicles working on or beside public roads should be fitted with 360° amber beacons.
Use beacons when the vehicle is:
- Creating an obstruction
- Moving slowly
- Conducting roadside works
Why It Matters:
Amber beacons are universally recognised as a hazard signal and help drivers react earlier and more safely.
5. Use of High-Performance Reflective Materials
Modern expectations go beyond "basic reflective" films.
Most authorities and contractors now expect micro-prismatic reflective materials, which deliver:
- Higher intensity reflection
- Better long-distance visibility
- Strong performance at shallow approach angles
This ensures your vehicle can be seen across multiple lanes on high-speed routes.
Why Chapter 8 Chevron Markings Are So Important
Chapter 8 exists for one simple purpose:
To reduce the likelihood of collisions involving stationary or slow-moving vehicles.
Here's why the markings matter in real-world conditions:
1. High Speeds Leave Little Reaction Time
At 60 mph, a slight lapse in concentration covers almost 27 metres.
Clear, bold markings give drivers the extra seconds they need to react safely.
2. Visibility Changes Constantly
Weather and lighting can shift quickly. Chapter 8 markings stay highly visible in:
- Torrential rain
- Fog or mist
- Early mornings or dusk
- Low winter sun
- Complete darkness
The mix of fluorescent (daytime) and retro-reflective (night-time) elements ensures consistent visibility.
3. Demonstrating Duty of Care
Even though Chapter 8 is not law, employers still have legal responsibilities under:
- Health and safety regulations
- Risk assessments
- Highway working rules
Using Chapter 8 markings shows you've taken reasonable steps to keep staff and the public safe.
Failure to do so could raise questions of negligence after an incident.
4. Meeting Contract Requirements
Many organisations only allow vehicles that meet Chapter 8 standards onto their sites or networks.
Non-compliant vehicles risk being turned away, failing audits, or causing project delays.
Quick Summary: What Your Vehicle Should Have
To operate safely and professionally on public roads, especially high-speed ones, a vehicle should include:
- Red/yellow Chapter 8 chevrons
- "HIGHWAY MAINTENANCE" (or relevant) text
- Amber flashing beacons
- High-intensity reflective materials
- ECE104 outline tape (not mandatory but widely expected)
Together, these features help ensure your vehicle is:
- Highly visible
- Clearly identified
- Compliant with industry expectations
- Safer for staff and road users
